Install New Relic SAP ABAP add-on package

The ABAP component of NRM4SAP is packaged as a SAP add-on and can be installed using transaction SAINT on client 000.

Add-on installation file

• Initial installation: Download the add-on file K-xxxAOIINNEWR.SAR to a folder on your local PC.
• Upgrade from previous version: Use the file named K-xxxAOUINNEWR.SAP.

Install SAP add-on file

1. Log in to client 000, which is the default client for configuration and system administration tasks.

2. Type SAINT in the SAP GUI command field and click Enter.

3. Navigate to Installation Package > Load Packages.

4. Choose one of the following methods:

   SAR archive from frontend

   1. Navigate and open the unzipped installation file.

   2. In the Content of the compressed file K-xxxAOIINNEWR.SAR popup, click Decompress.



   3. The message File K-xxxAOIINNEWR.SAR sucessfully transferred, decompressed, and deleted appears.

   SAR archive from application server

   1. Ensure there is a download directory under the trans directory on the application server (/usr/sap/trans/download).
   2. Copy the add-on file to this directory.

   EPS files from application server

   1. Untar the SAR file into the PAT file first. Execute the command below on the OS (Linux in this case):

      cd /usr/sap/trans
      cp /tmp/K-300AOIINNEWR.SAR /usr/sap/trans
      SAPCAR -xvf K-300AOIINNEWR.SAR

      Copy

   2. In the popup, Do you want to upload OCS Packages from the EPS inbox?, select Yes. Ensure the OCS file is uploaded without errors.

5. Click Start.

6. Select the Installable Add-on packages for your system and click Continue.

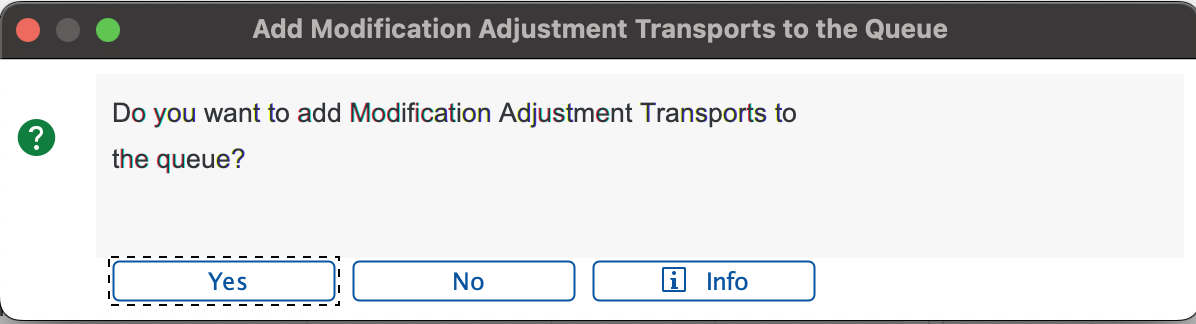

7. When asked Do you want to add Modification Adjustment Transports to the queue?, click No.



   Important

   Click Yes if adjustment transports are provided in the packaging list with instructions.

8. Click the button to proceed to the next screen.

   Important

   If the Errors during Disassembling OCS Packages page appears, click Ignore.

9. Once the package is installed, click Finish. The Sending the runtime analysis popup appears; you may choose:

   • Send: Opens a feedback form with the runtime analysis data in a local browser window. You can use this form to send data to SAP.
   • Display: Displays the runtime analysis first and then send the feedback form in a local browser window.
   • Do not send: Leaves the dialog without sending the runtime analysis data.

10. Ensure installation success in the Installed Components tab.

11. Logout from Client 000.

    Tip

    You may type /nex in the SAP GUI command field to log out of the system.
