GitHub Integration for Service Architecture Intelligence

Are you looking to gain deeper insights into your service architecture by leveraging data from your GitHub account? The New Relic GitHub integration imports repositories, teams, and user data directly into the New Relic platform with selective data fetching capabilities.

This integration streamlines the onboarding process for users and teams while simplifying role management. It also clarifies entity ownership mapping, reducing setup time and effort. With the new selective data fetching feature, you can choose exactly which data types to import—whether it's teams and users, repositories and pull requests, or both. This integration aims to enhance the management and visibility of Catalogs and Scorecards within New Relic. For more information, refer to the Service Architecture Intelligence capability.

• Supported platforms:
  • GitHub Cloud
  • GitHub Enterprise (GHE) Cloud (without data residency)
• Supported regions: US and EU regions

Prerequisites:

• Log in to your GitHub account you plan to integrate with New Relic.

• You must be the Organization Manager or Authentication Domain Manager.

• Required entitlements:

  • teams_discount_usage
  • integration_github_discount_usage
  • integration_github_ccu

IP Whitelisting Requirement

If your organization uses IP whitelisting for outbound connections, you must allow traffic from our data collector endpoints.

Please refer to the official New Relic public documentation for the complete and most current list of allowed IP addresses you need to add to your whitelist configuration.

What data can be synced

The GitHub integration allows you to selectively choose which data types to import into New Relic, giving you control over what information is synchronized:

Available data types

• Teams and Users: Import GitHub team structures and user information to enhance team management and ownership mapping

  Important

  User email visibility requirement: The integration only imports GitHub users who have configured their email addresses as public in their GitHub profile settings. Team members with private email configurations will be excluded from the user data synchronization process.

• Repositories and Pull Requests: Import repository data and pull request information for better code visibility and deployment tracking

• Both: Import all available data types for comprehensive GitHub integration

Data selection considerations

You'll be able to configure your data selection preferences during the initial setup process.

Set up the GitHub integration

1. Go to one.newrelic.com > + Integration & Agents > GitHub integration.

2. On the Select an action step, select Set up a new integration, and click Continue.

3. On the Begin integration screen:

   a. To connect with your GitHub account, click Get started in GitHub. The New Relic Observability opens in the GitHub Marketplace. b. Complete the app installation within your GitHub organization to retrieve data related to your selected data types. After the installation is complete, you will be redirected to the Select an action step one more time. c. Select Begin integration, and click Continue.

   d. Select your data preferences: Choose which data types you want to sync:

   • Teams + Users: Import GitHub team structures and user information

   • Repositories + Pull Requests: Import repository and pull request data

   • Both: Import all available data types

     Tip

     If teams are already integrated from another source (like Service teams), the Teams + Users option will be disabled to prevent conflicts.

   e. Click Start first sync to begin importing your selected data types.

   g. After you view the Sync started message, click Continue. The Integration status screen will display the count of your selected data types (teams, repositories, etc.), refreshing every 5 seconds. Allow a few minutes for the complete import of all data.



4. (Optional) On the GitHub integration screen, access your imported data:

   • Click Go to Teams to view the imported teams information on Teams (if teams were selected during setup)
   • Click Go to Repositories to view the imported repositories information on Repositories (if repositories were selected during setup)

   tip

   Auto-assign repositories to teams: You can automatically assign GitHub repositories to their teams by creating a teamOwningRepo custom property in GitHub. Create the custom property at the organization level and assign a value for the custom property at the repository level. Additionally, you can set up a custom property for multiple repositories at the organization level simultaneously. The integration will automatically assign the repositories to the respective teams based on the custom property. For more information on creating custom properties, refer to the GitHub documentation.

Enable team ownership discovery

The GitHub integration includes a discovery service that can automatically establish team ownership of repositories based on GitHub's organizational structure and custom properties.

How team ownership works

The discovery service uses multiple methods to establish repository ownership:

1. GitHub custom properties: Uses the teamOwningRepo custom property to directly assign repositories to teams
2. Team membership analysis: Analyzes commit patterns and team member contributions to infer ownership
3. Repository organization: Uses GitHub's organizational structure and team permissions to determine ownership

Setting up automatic team ownership

To enable automatic team ownership discovery:

1. Create custom properties in GitHub (recommended):

   • Navigate to your GitHub organization settings
   • Create a teamOwningRepo custom property at the organization level
   • Assign team values to repositories at the repository level
   • The integration will automatically map these relationships during sync

2. Configure team permissions:

   • Ensure teams have appropriate repository access in GitHub
   • The discovery service will use these permissions to infer ownership relationships

3. Enable automatic team ownership discovery:

   • After sync completion, enable automatic team ownership discovery in New Relic. For more information, refer to the Automating Teams ownership documentation.
   • Verify that ownership relationships are correctly established

Manage your GitHub integration

After setting up your GitHub integration, you can manage it through the New Relic interface. This includes refreshing data, editing configuration, and uninstalling when needed.

Access integration management

1. Go to one.newrelic.com > + Integration & Agents > GitHub integration.

2. On the Select an action step, select Manage your organization, and click Continue.

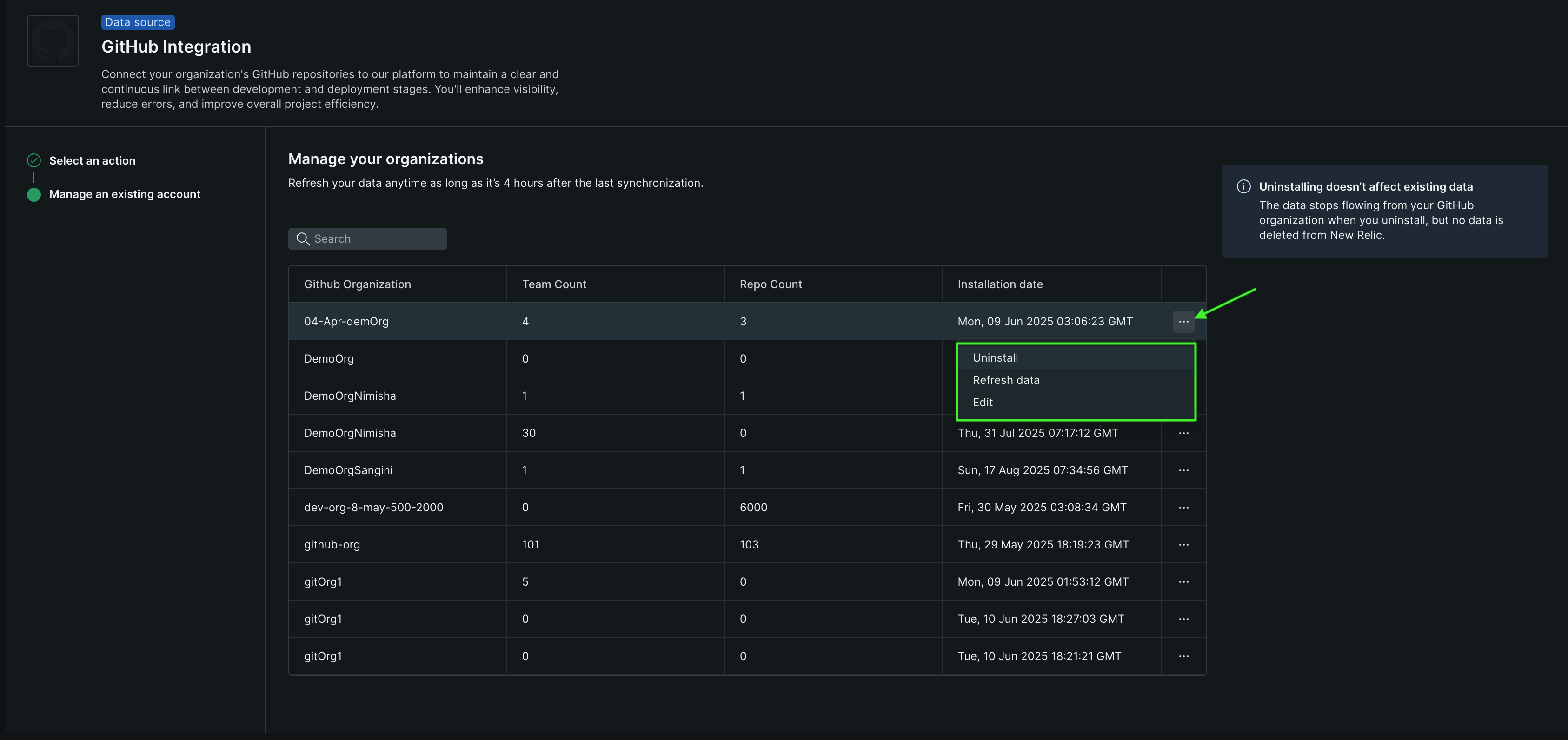

The Manage GitHub integration screen displays your connected organizations with their current sync status and data types.

Refresh data

When you click the Refresh data option, it provides a streamlined way to update your GitHub data in New Relic.

To refresh data:

1. From the Manage GitHub integration screen, locate your organization.

2. Click Refresh data next to the organization that you want to update and then click Continue.

3. On the Refresh Data step, click Sync on demand.

The system will then validate your GitHub permissions and organization access, fetch only new or changed data since the last sync, process and map the updated data according to your selected data types, and update the integration status to reflect the latest sync timestamp and data counts.

What gets refreshed:

• New team members added to GitHub teams
• Repository changes (new repos, archived repos, permission changes)
• Updated team ownership through custom properties
• Changes to user profiles and team structures

Edit integration settings

Use the Edit option to modify your integration configuration after initial setup. You can adjust which data types are synchronized between GitHub and New Relic, choosing from Teams + Users, Repositories + Pull Requests, or Both data types based on your current needs.

To edit the GitHub integration:

1. From the Manage GitHub integration screen, locate your organization.

2. Click Edit next to the organization that you want to update and then click Continue.

3. On the Edit Integration Settings step, adjust your data type selections as needed.

4. Click Save changes to apply your updates.

What happens during edit:

• Current data remains intact during configuration changes
• New settings apply to subsequent syncs
• You can preview changes before applying them
• The integration continues running with previous settings until you save changes

Uninstall the GitHub integration

Uninstalling the GitHub integration stops data synchronization from the selected organization but preserves all previously imported data in New Relic.

To uninstall:

1. From the Manage GitHub integration screen, locate the organization you want to uninstall and click Uninstall.

2. In the confirmation dialog, review the organization details and click Uninstall organization to confirm.

3. You'll see a success message confirming the uninstallation.
